Brand Name : SMTCL
Model Number : T5.1-100Q
Certification : CE ISO certification
Place of Origin : CHINA
MOQ : 1
Payment Terms : T/T, L/C,, Western Union
Supply Ability : 50 sets per month
Delivery Time : 45-60 days
Packaging Details : The wooden case,Tin trunk ,Other seaworthy packing
CNC Control System : GSK/FANUC/SIEMENS
CNC or Not : CNC
Key word : Slant Bed Lathe CNC Machine
Max. swing over bed : Φ420
Max. swing over slide : Φ160
Max. Turned Length : 160 mm
Travel (X Axis) : 145 mm
Travel (Z Axis) : 205 mm
X/Z rapid traverse : 30 m/min
Max. Spindle Speed : 5000 r.p.m
Tool Post Stations : Horizontal 8 station servo turret
Product Description:
Product Features:

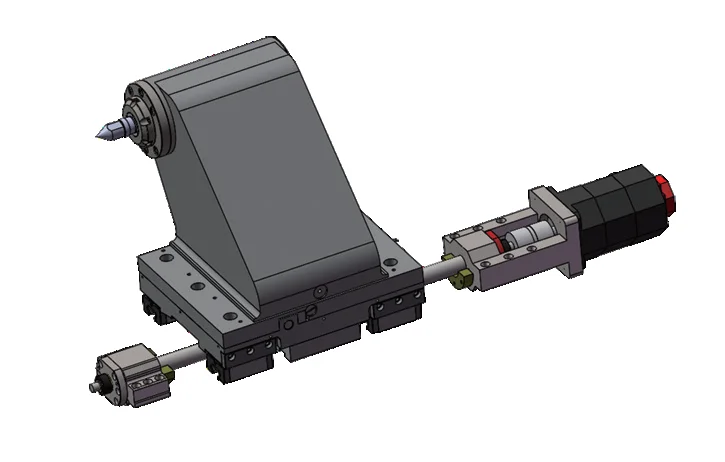

1,High Precision
Item | Unit | T5.1-100Q | Remarks | |
Max. turning diameter | mm | 160 | | |
Max. turning length | mm | 160 | Different fixture parameters change | |
Max.swing diameter over bed | mm | Φ420 | | |
Max.swing diameter over cross slide | mm | Φ160 | | |

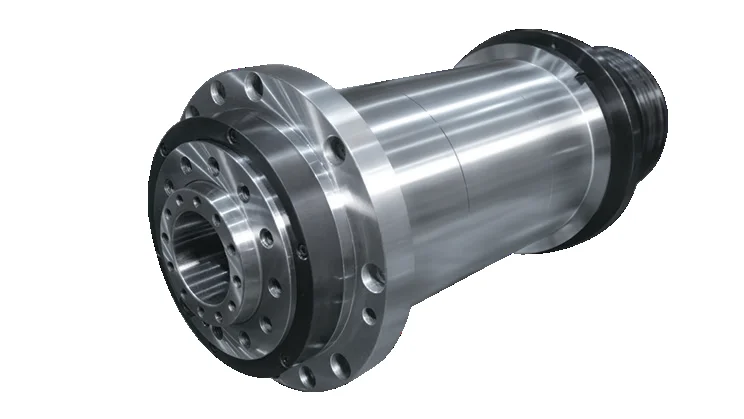

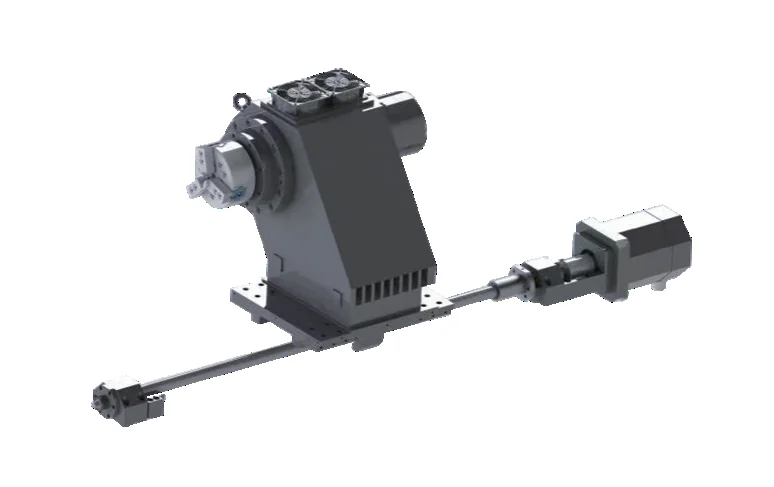

Spindle | Type of spindle nose | | A2-5 | |
Inner diameter of front bearing | mm | Φ90 | | |
Taper of spindle bore | | 1:20;Φ62 | | |
Spindle bore | mm | Φ65 | | |
Max. through bar diameter | mm | Φ44 | | |
Standard chuck diameter | inch | 6 | | |
Max. spindle speed | r/min | 5000 | Subject to chuck and fixture restrictions | |
Spindle rated torque | Nm | 35(2000r/min) | | |
Max. spindle torque | Nm | 70(1500r/min) | | |
Main motor output power continuous /30 minutes | kW | 7.5/11 | Mechanical spindle | |
Two axis | Rapid traverse of X/Z axis | m/min | 30 | |
X axis travel | mm | 145 | | |
Z axis travel | mm | 205 | | |
Turret | Turret form | | Horizontal 8 positions servo turret | |
Center height of turret | mm | 80 | | |
Turret rotation repeat positioning accuracy | Sec. | ±1.6 | | |
Whether the cutter can be selected nearby | | yes | | |
Other | Distance from spindle center to bed bottom | mm | 926 | |
Machine net weight | kg | 2600 | | |
Total power supply capacity | kVA | 23 | | |
Overall dimensions (Length X width X height) | mm | 1750×1650×1650 | Overall dimension |
Industry application:
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
